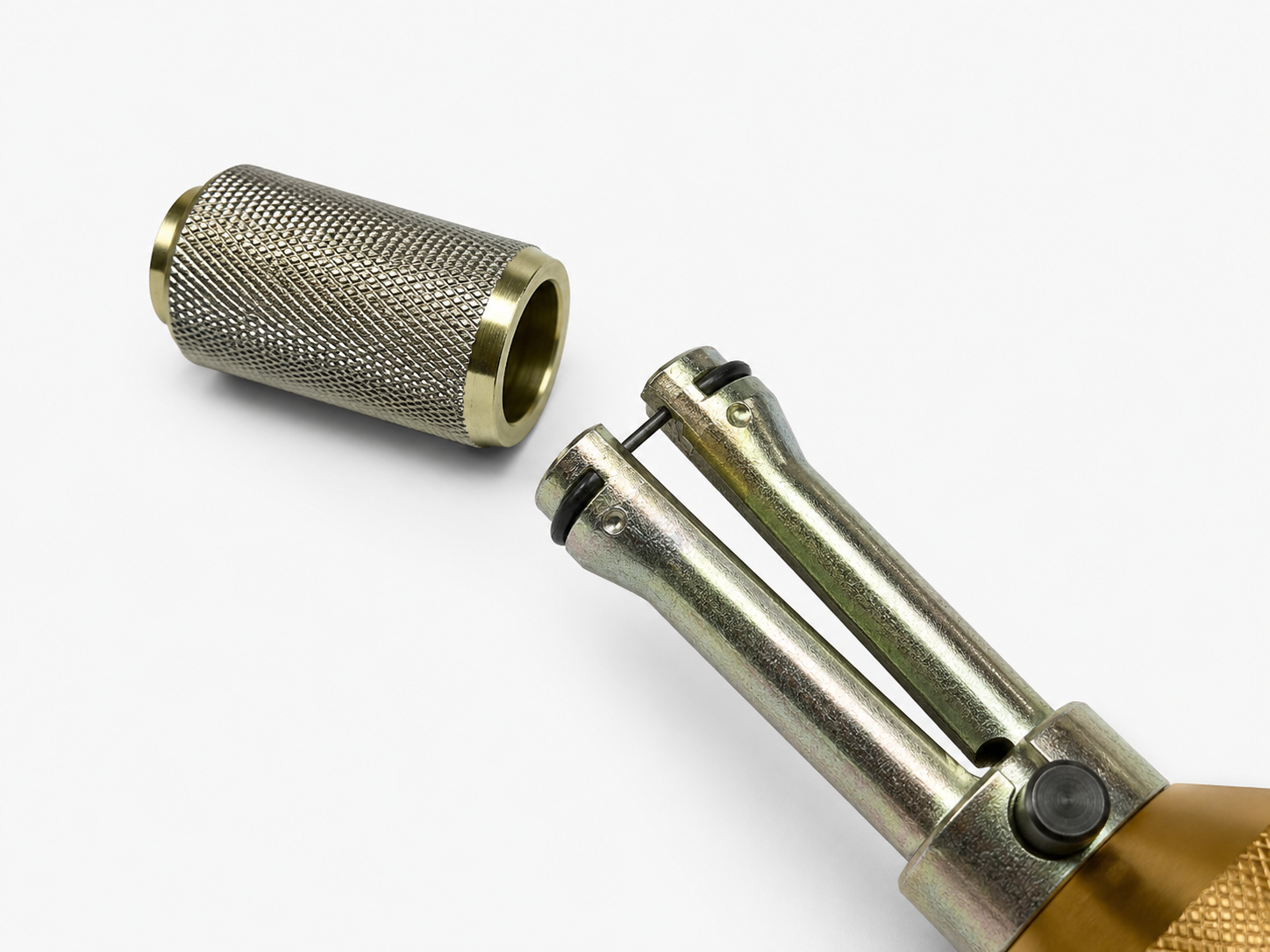

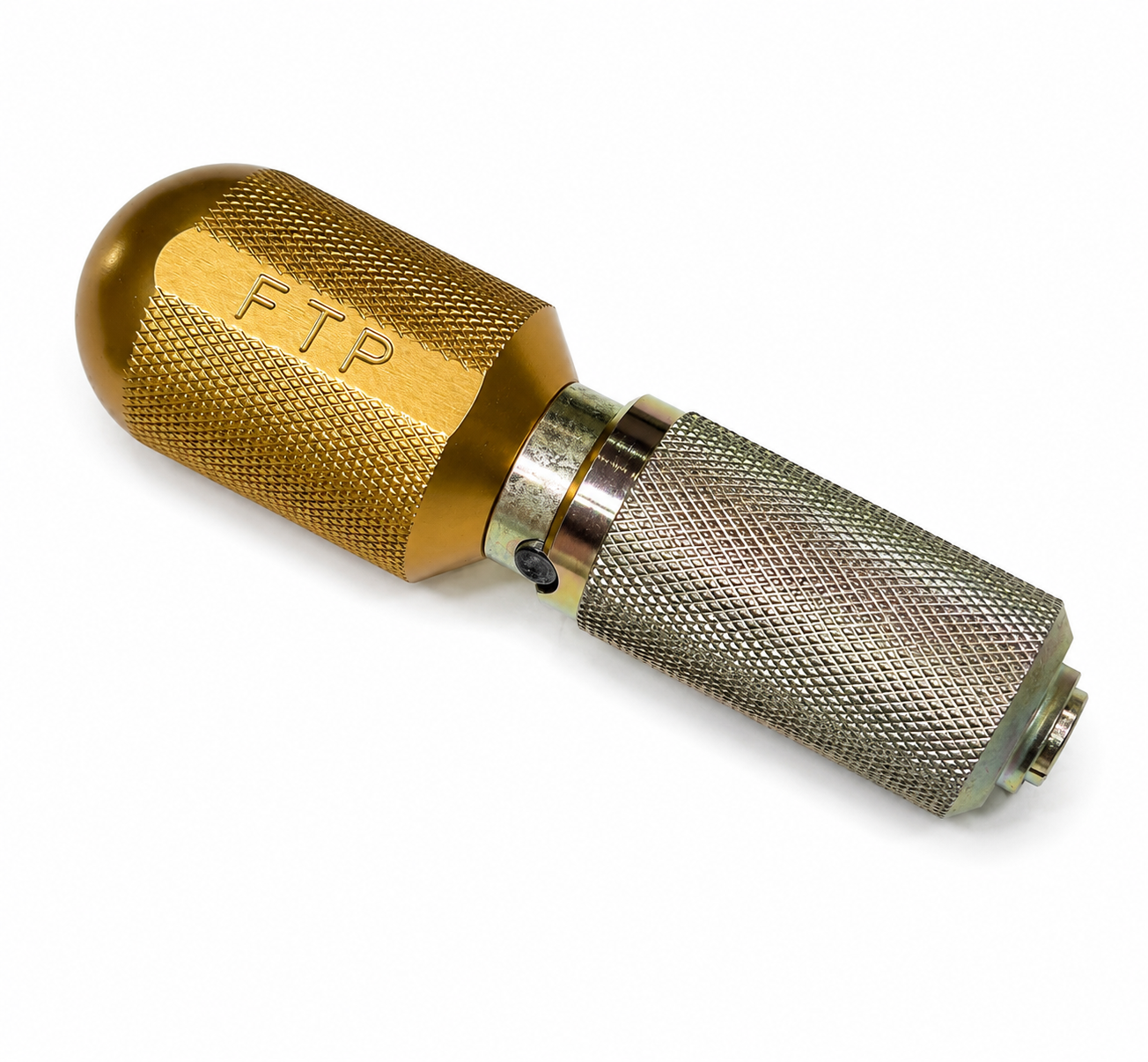

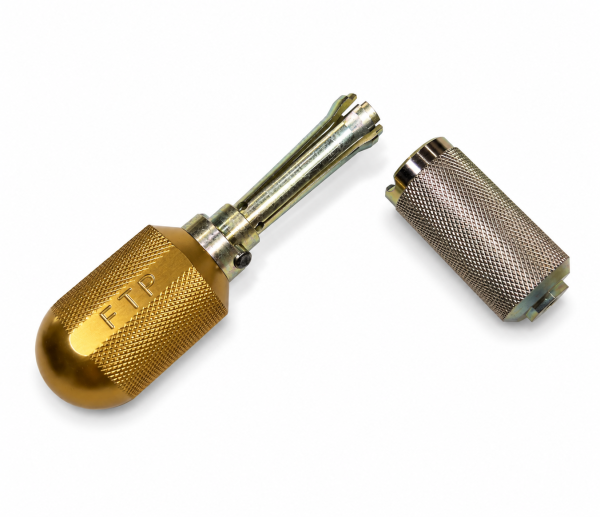

The FTP 15mm Piston Circlip Installation Tool is engineered to eliminate the frustration of installing piston wrist pin circlips on 15mm piston applications.
Unlike most circlip installation tools of similar design that require shortening or trimming the circlip before installation, the FTP tool features an exclusive spiral-tip nose that allows the circlip ends to naturally overlap as they compress. This innovative design eliminates the need to cut or modify the circlip, making installation faster, easier, and more reliable.
Simply load the circlip into the tool, align the end of the circlip with the two dots on the press tool, align with the bore and press through the sleeve. The spiral-tip design compresses the circlip evenly and guides it directly into the piston groove with controlled pressure. The result is quick, repeatable installation with less chance of damaging the piston, deforming the circlip, or sending the clip flying across the shop.
Features
• Exclusive FTP spiral-tip compression design
• No trimming or modifying the circlip required
• Allows circlip ends to overlap during compression
• Fast, simple, controlled installation
• Helps prevent piston damage during assembly
• Reduces bent or distorted circlips
• Helps prevent circlips from launching during installation
• No pliers, picks, or screwdrivers required
• Precision-machined guide sleeve for accurate alignment
• Heavy-duty steel construction for years of professional use
Compatibility
Designed for 15mm wrist pin pistons commonly found in:
• KZ Shifter Kart Engines
• TM KZ
• Vortex ROK Shifter
• Modena
• DEA
• Honda CR125
• Yamaha YZ125
• Kawasaki KX125
• Suzuki RM125
• Other 125cc two-stroke engines using 15mm piston pins
Whether you're rebuilding a championship-winning race engine or performing routine maintenance, the FTP Piston Circlip Installation Tool turns one of the most frustrating assembly jobs into a fast, simple, and repeatable process.
